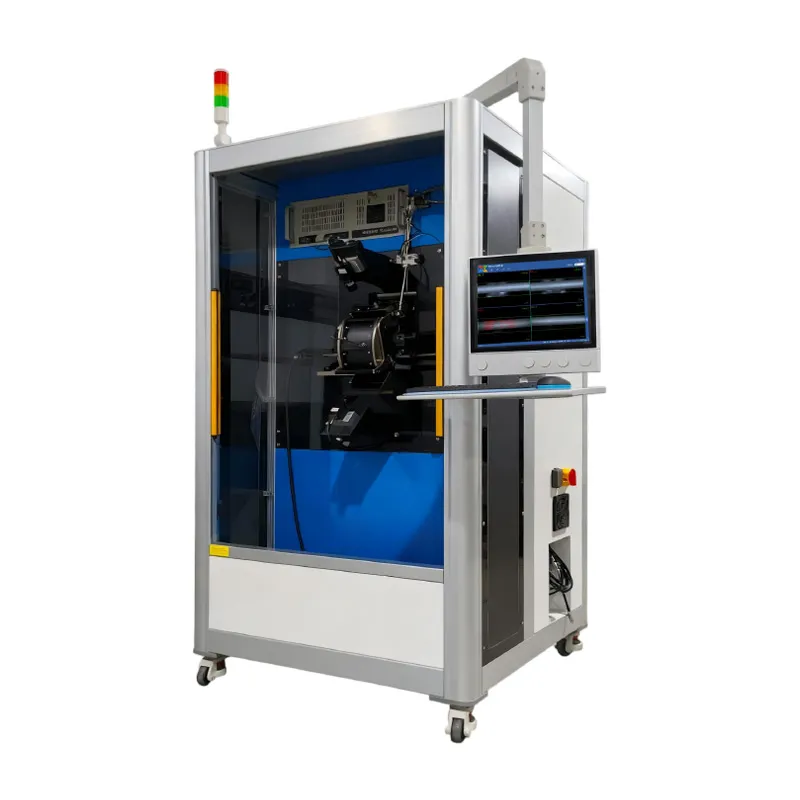

Equipment Features
▪ Large Contour-Rotating Fixture.
▪ 360° Full-Circumference Visual Scanning.
▪ Accurate Multi-Defect Identification.
▪ Automatic Judgment & Data Traceability.

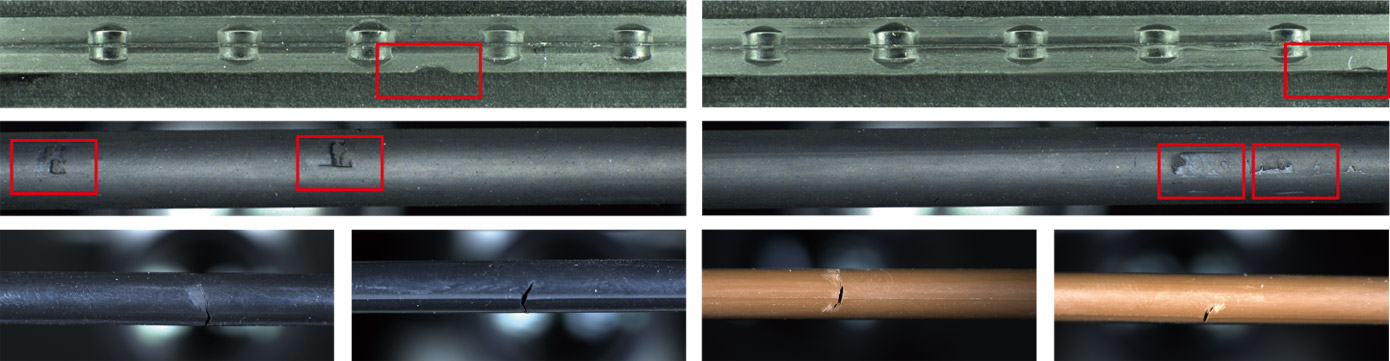

Detection Interface
Equipment Functional Parameters
| Dimensions | 1000mm*1300mm*2000mm | |

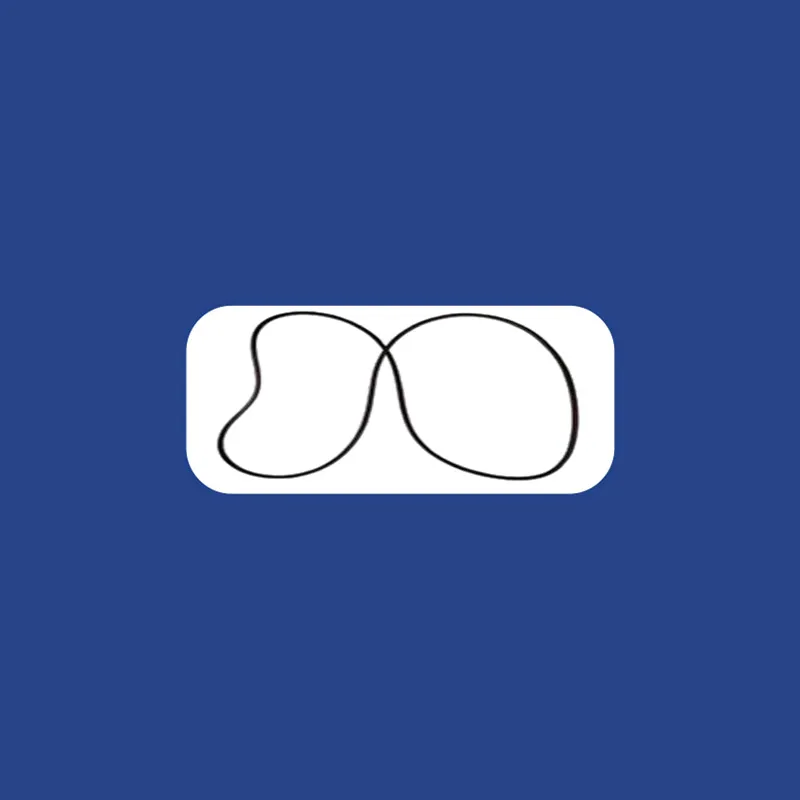

| Inspection Target | Type | Large O-Ring、Rectangular Rings、Alien Circle |
| Size Range | 300mm-1000mm | |
| Inspection Item | Camera Configuration | 4-Camera Appearance Inspection (Option: 1-Camera Wire Diameter Uniformity Measurement System) |
| Dimensional Inspection | Wire Diameter Uniformity | |
| Visual Inspection | Missing material, scratches, burrs, cracks, vulcanized adhesive, etc. | |
| Feeding Method | Manual Load (Customizable robot automatic feeding) | |
| Inspection Accuracy | Repeatability ±0.02mm | |
| Inspection Efficiency | 4-6pcs/min (Automatic feeding, The number of camera shots varies with the circumference, leading to differences in speed.) | |
| Not only do we provide standard equipment, but we can also flexibly expand and customize various specialized stretching equipment according to your specific process. | ||
